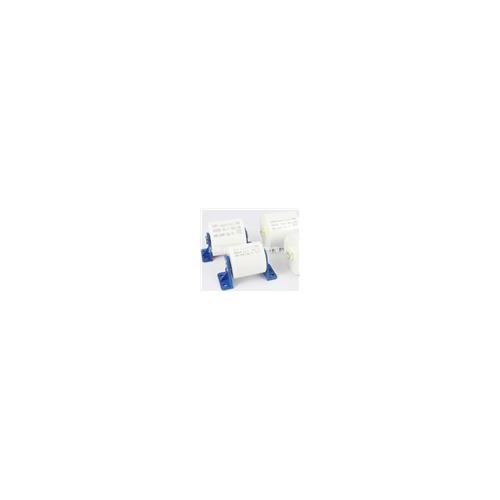

DAWNCAP-DHB高频高压
滤波及高纹波电容器
主要应用/Application
广泛应用于UPS，SMPSs, 逆变电源，焊机电源等设备中输入输出滤波以及高频,高纹波电流用。
产品特点/Characteristics
电介质：聚丙烯薄膜
结构：金属化膜干式结构
封装：阻燃迈拉胶带，阻燃（94V-0级）环氧封装
引出：镀锡铜螺母或片引出
高纹波电流
高稳定性,低损耗
具有自愈性
技术性能/Specifications
|
引用标准/Reference standard
|
IEC 61071 60068 60384
|
|
工作温度范围/Operating temperature range
|
-40~85℃
|
|
容量范围/Capacitance
|
5.0~100μF
|
|
额定电压/ Rated Voltage
|
400,800,1000Vdc (250,400,500Vac)
|
|
容量偏差/ Tolerance
|
±5%, ±10%
|
|
极间耐电压/ Test voltage between terminals
|
1.6Un 10s 25±5℃
|
|
极壳耐电压 /Test voltage between terminals and case
|
3000V 50Hz 60S, 25±5℃
|
|
损耗角正切/Dissipation factor
|
tgδ≤1×10-3 at 25±5℃ , 1KHz
|
|
绝缘电阻/Insulation resistance
|
C*IR≥5000S, at 100VDC,25±5℃,60S
|
|
预期寿命/Life expectancy
|
100000h at Un and 70℃
|
|
