Technical Data |

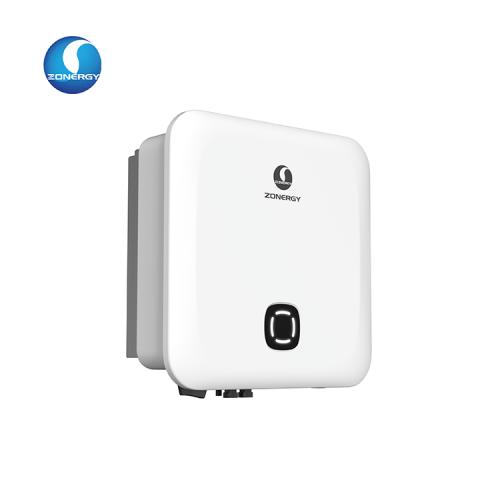

Mercury-3K-S0 |
Mercury-5K-S0 |
|
Max. DC input power |
3900W |
6500W |
|
Max. DC input voltage |
550V |
550V |
|
Operation voltage range |
80V-540V |
80V-540V |
|
Number of independent MPPT / strings per MPPT |
1/1 |
2/1+1 |
|
MPPT max. current |
13A |
13A |
|
AC Output Data |
|
Rated output power |
3kW |
5kW |
|
Max. output power |
3.3kW |
5.5kW |
|
Rated output voltage |
230V/180V-280V |
|
Rated output frequency |
50Hz,60Hz/±5Hz |
|
Rated output current |
13.1A |
21.8A |
|
Max. output current |
14.5A |
24A |
|
Power factor |
-0.8~+0.8(adjustable) |
|
THDi |
<3%(Nominal Output) |
|
Grid system pattern |
L+N+PE |
|
Efficiency |
|
Max. efficiency |
97.6% |
98.2% |
|
Europe efficiency |
96.8% |
97.5% |
|
Protection |
|
Input DC switch |
yes |
|
Input over current protection |
yes |
|
DC reverse polarity protection |
yes |
|
Output over voltage protection |
yes |
|
Output over current protection |
yes |
|
Anti islanding protection |
yes |
|
Insulation impedance protection |
yes |
|
RCD detection |
yes |
|
General Data |
|
Dimensions(W/L/H)in mm |
265/310/140 |
330/312/170 |
|
Weight |
7.2kg |
10kg |
|
Noise |
<25dB |
|
Operation temperature range |
-25℃~+60℃ |
|
Heat dissipation mode |
Natural |
|
IP Class |
IP65 |
|
Maximum altitude |
4000m |
|
Self-Consumption night |
<1w |
|
Topology |
Transformerless |
|
Features |
|
LCD display |
yes |
|
Communication interface |
WIFI/GPRS/RS485(optional) |
|
Warranty |
5 years (standard) |
|
Standards |
IEC62109-1,IEC62109-2,NB/T32004,VDE-AR-N4105,EN50549,AS 4777 |
