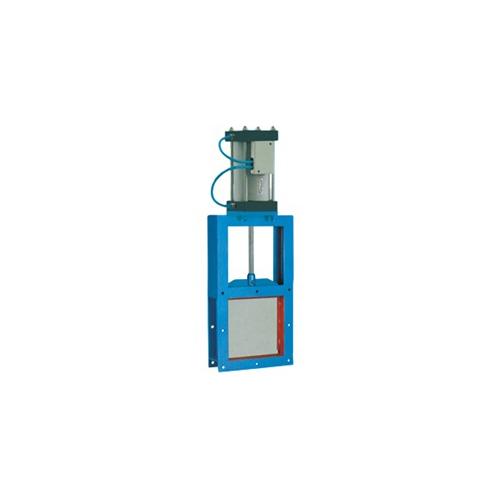

气动方型插板阀

产品概述
气动方型插板阀是一种粉料、晶粒料、颗粒料及小块物料的流量或输送量的主要控制设备，广泛应用于矿山、粮食等行业控制流量变化或迅速切断（特殊直径≤50mm）。
气动插板阀结构特点：气动单向平板闸阀采用钢板焊接结构，配重杆自复位机构，结构紧凑，工作平稳。气动插板阀、气动双向平板闸阀该闸门主要由框架、闸板及气缸组成，气源通过电磁换向阀带动气缸，气缸带动闸板作水平方向的往复运动，达到阀门的启闭目的。闸阀结构简单，重量轻，操作灵活，装拆方便，采用优质碳素钢制造，其强度高，性能好，使用寿命长；丝杆及螺母采用了软防罩结构，不受外界粉尘影响。
技术参数范围
公称通径：200×200~1000×1000
适用温度：-10~+200℃
连接法兰：GB/T9113、JB/T79
主体材料：WCB、Q235A、304、316、304L、316L
密封型式：硬密封、软密封
配套附件：
1、安装法兰
2、电磁阀
3、空气过滤器
4、行程开关
注：可来图来样定作非标的螺旋闸门
Product introduction
Square Knife gate valve Screw valve is a kind of primary device for controlling flow or flow rate of powder,grain,partcle,and small piece material.It is widely used for such sectors including mining,grain,etc.For regulating flow or cutting rapidly(special material diameter=50).
Pneumatic flashboard valve structure features: one-way slab gate valve USES the steel plate welding structure, balance weight rod since the reset mechanism, compact structure, smooth work. Pneumatic flashboard valve, pneumatic two-way slab gate the gate is mainly composed of frame, gate and cylinder, air source through the electromagnetic directional valve drive cylinder, cylinder drives the ram for the reciprocating movement of the horizontal direction, the purpose of opening and closing of the valve. Gate valve has simple structure, light weight, flexible operation, convenient installation, high quality carbon steel manufacturing, its high strength, good performance, long service life; Screw and nut used the soft proof cover structure, is not affected by the dust.
Technical Parameter Range
Nominal diameter:200×200、....、1000×1000
Suitable temperature:-10~+200℃
Flange drilling:GB/T9113、JB/T79
Main materials:WCB、Q235A、304、316、304L、316L
Seal type:硬密封、软密封
Accessories:
1、Flange
2、Solenoid valve
3、Air filter
4、Travel switch
Note: Non-standard screw gate valve could be customized based on drawing or sample.

主要外形及连接尺寸Profile and connection dimension				单位Unit:mm
类别Category	A×A	B×B	C×C	L	H	Do	n-d
单向 One-way	200×200	256×256	296×296	100	820	300	8-φ12
	250×250	306×306	346×346	100	930	340	8-φ14
	300×300	356×356	396×396	100	1050	380	8-φ14
	400×400	456×456	496×496	100	1140	445	12-φ14
	450×450	510×510	556×556	120	1450	530	12-φ18
	500×500	560×560	606×606	120	1610	580	16-φ18
双向 Two-way	600×600	660×660	706×706	120	1830	450	16-φ18
	700×700	770×770	820×820	140	2130	450	20-φ18
	800×800	870×870	920×920	140	2440	450	20-φ18
	900×900	974×974	1030×1030	160	2660	450	24-φ23
	1000×1000	1074×1074	1130×1130	160	2870	450	24-φ23
说明 Specification	LMD-单向 LMD one-way	I-手轮 I hand wheel	链条节数M=0.105×-113（×是丝杆中心离地面高度）距地面小于1.7米用于手轮大于1.7米用链轮 Number of chain nodes M=0.105×-113 (×means the distance of lead screw center from surface);use hand wheel if the height is less than 1.7m;use chain wheel if the height is more than 1.7m.
	LMD-双向 LMD two-way	II-链条 II chain
