Basic Info.
Model NO.: Light Source: Power Supply: Application: Protection Level: Certification: Wind Generator: Solar Module: Storage Battery: Cable Long: Operating Temperature: Certificate: Export Markets:
|
SFG01-60W |
|
LED Light |
|
Solar |
|
Highway |
|
IP65 |
|
CE |
|
24V/400W |
|
90W× 2PCS |
|
120ah× 2PCS |
|
20m; 2.5mm2 Copper Cable |
|
-30~60 |
|
CE RoHS |
|
Global |
Additional Info.
Trademark: Packing: Standard: Origin: Production Capacity:
|
SunMaster |
|
Carton or Wood Boxes |
|
CE, RoHS |
|
Zhejiang |
|
5000pcs/Month |

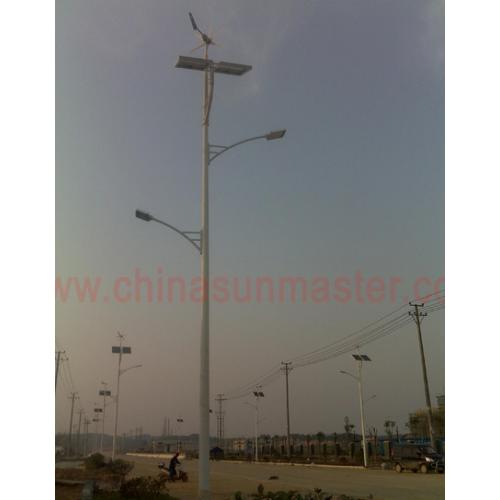

Product Description
Main Parts Specification:
Wind generator: 24V/400W; Permanent Magnet Type
Solar Module: 90W× 2PCS; Mono-crystalline solar panel with high-efficient solar cells construction. Service life: 25years.
Light Source: 36W + 26W low pressure sodium light
Storage Battery: 120Ah× 2PCS, Gel Battery
PV controller: 24V/10A; Time controll and light control, preventing from overcharging and over-discharging, having output short circuitprotection
Lamp Pole: Height 8m; Hot galvanized and plastic spraying
Cable Long: 20m; 2.5mm2 copper cable
Lasting working: Continuous lighting 6 to 8hours/day; Guarantee lasting 3 to 5 days under rainy/cloudy day.
Operating Temperature: -30º C to 60º C
Anti-wind Level: Wind resistance 50m/s.
Production Capacity: 5000PCS/Month
1*40'GP: 45PCS
(All parameters can be designed in accordance with the actual requirements)
